Brake Line Clamp Install
CLAMP-316SF and CLAMP-316SR
In both of these installations, a single brake line was run from the
MC down the driver side of the car. Part Numbers CLAMP-316SF and
CLAMP-316SR were used.

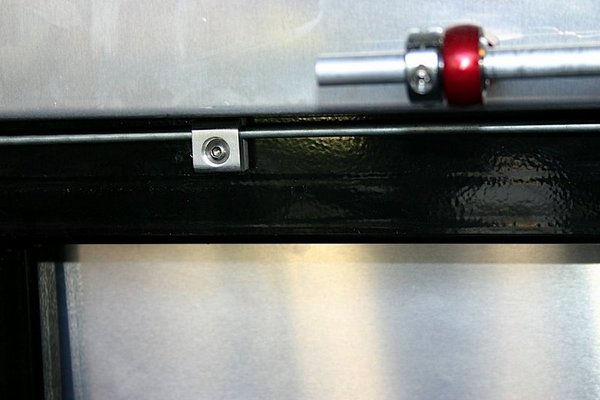

CLAMP-316SF

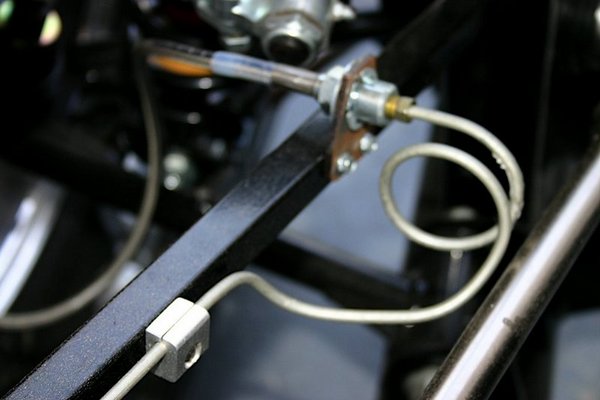

This installation shows a front brake line installation on a couple of
Mark III roadsters. In these installs, CLAMP-316SF were used.
Alternatively, the line could be run
along the 4" round tube. In that type of install, CLAMP-316SR would be
needed.

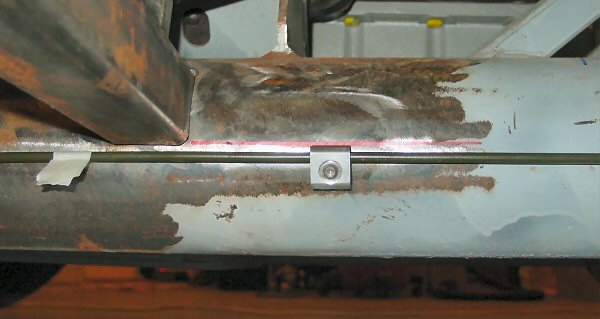

CLAMP-316SR

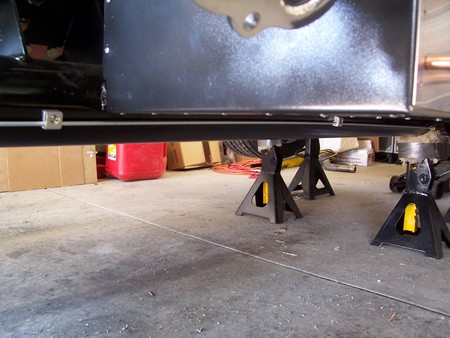

In these installs, CLAMP-316SR were used to run down a round tube chassis
backbone from the master cylinder location in the front of the chassis
to the rear of the chassis to feed the rear brake system plumbing.
